Technical Specs

Rated Wattage: 240W/360W/480W/600W/720W

Rated Voltage: AC120-277V

Luminaire Efficacy: 120lm/W

Lumen Output: 28,800lm-86,400lm

CCT: 2700-6500K/RGB/RGBW

CRI: Ra70

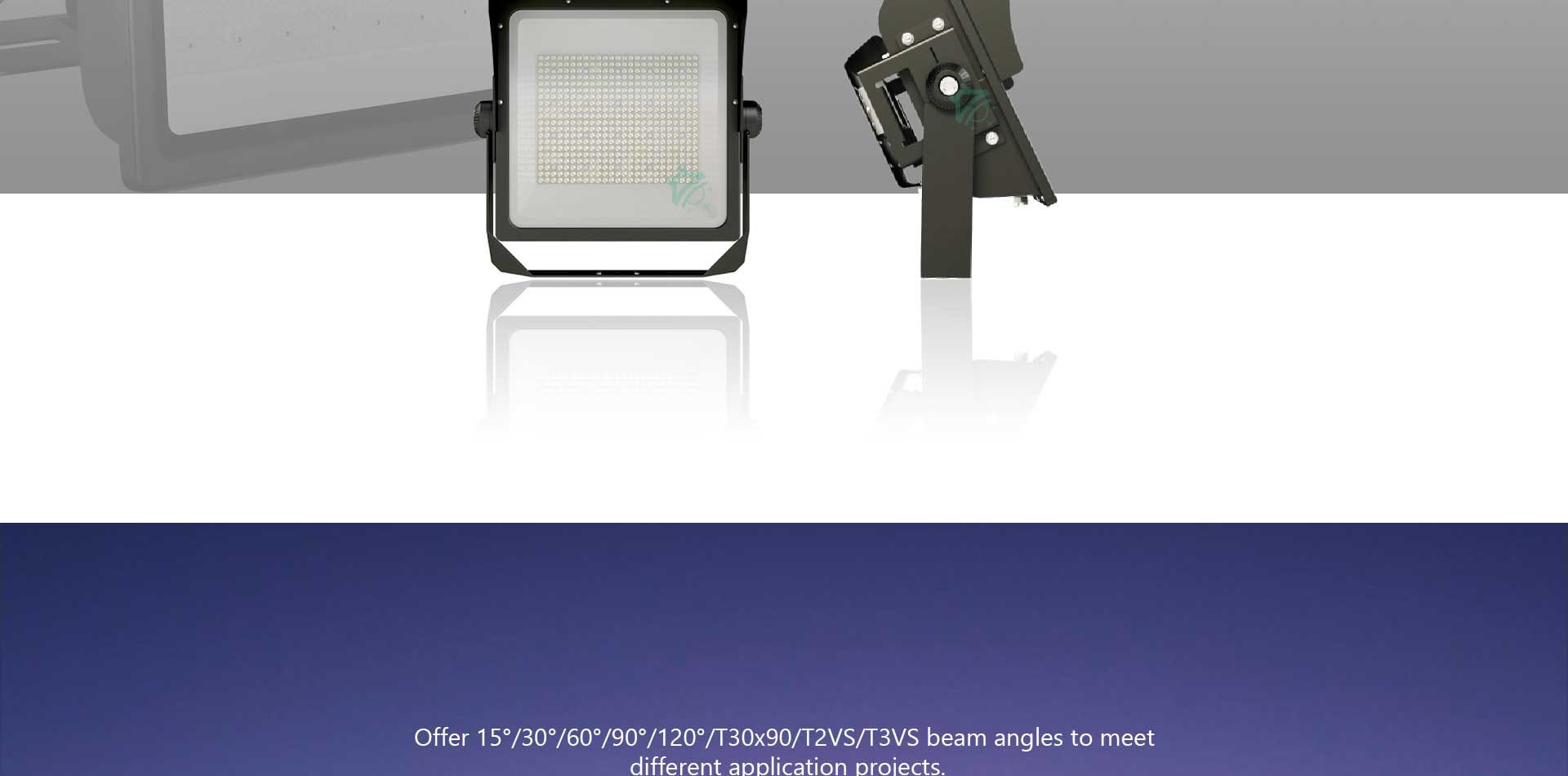

Beam Angle: 15°/30°/45°/60°/90°/120°/T3VS/T2VS/T30x90

IK: IK08

Vibration Test: 3G

Working Temperature: -40℃ to +50℃（-40°F to +122°F）

Dimmable: 0-10V/1-10V dimming

Intelligent Control: DALI, DMX512

Ingress Protection: IP66

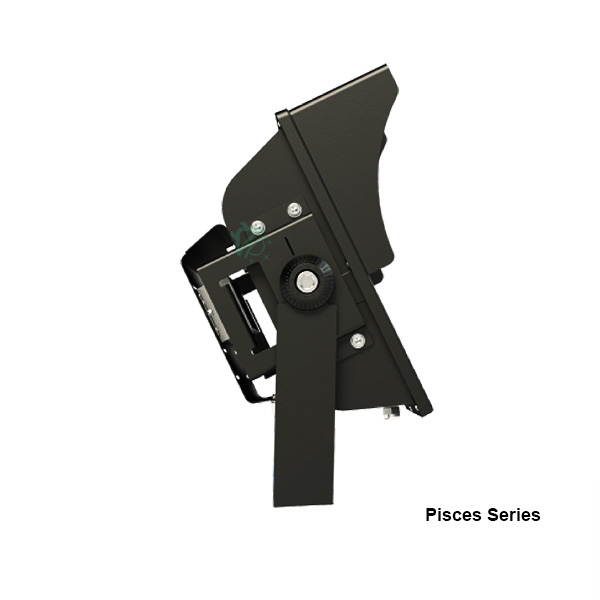

Housing: Die-casting Aluminum

Lifespan: 50,000 Hours

Warranty: 5 Years

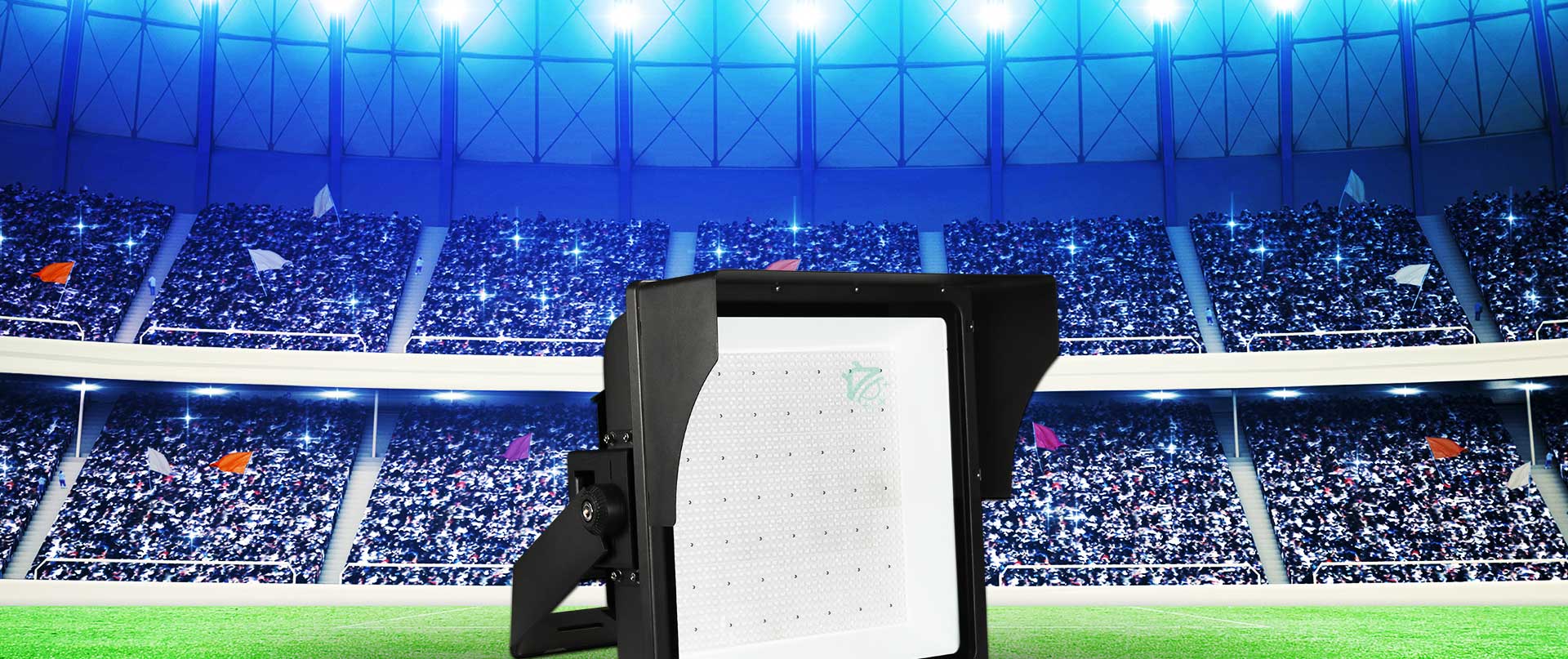

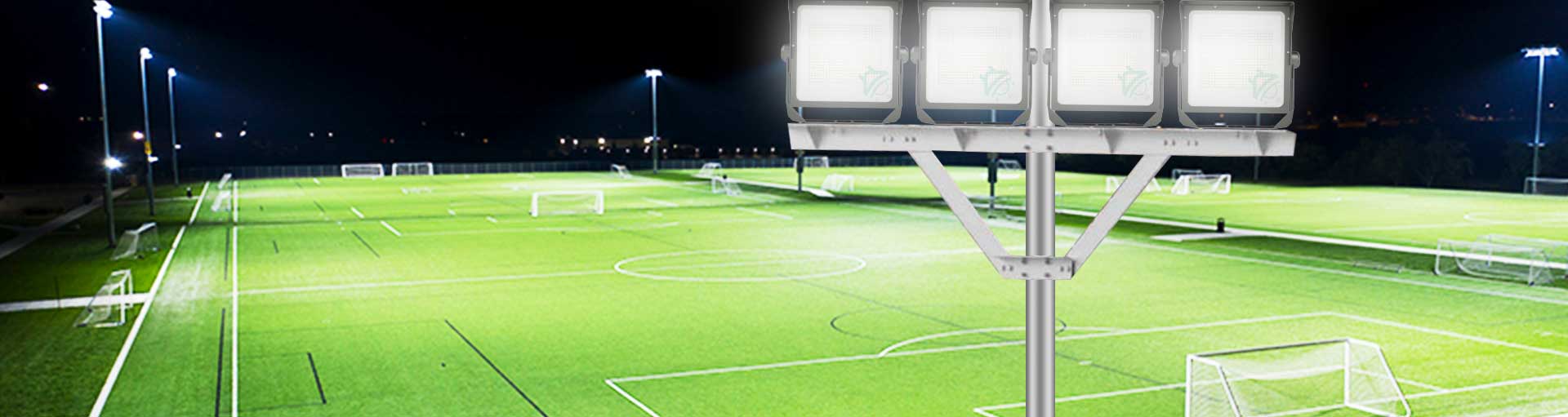

Applications: Sports court, tunnel, walkway, parking lot, security lighting, general area space, etc.

Certification
